Cam-Goggle Valve

Goggle valves are very similar to line blind valves. They are generally used in Gas Blast Furnace or other low pressure applications (typically less than 1 bar / 25 psi). They can be enclosed or open design and can be made up to 64 inches.

Quick Request

Questions?

Quote Request
Fast Blind Valves > Product Range > Goggle Valve

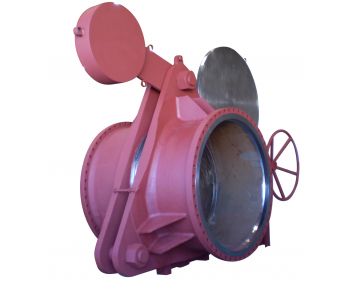

60 60" Goggle Valve - Type I - Open

Cam Google Valve Models

There are two basic types of Goggle valve available - Type I Open and Type II an enclosed variant. The open type is for all intents and purposes no different than a sliding (Cam-Slide) or swinging (Cam-Set) line blind mechanism, except that it may be specified according to specific operating conditions rather than to an ASME pressure class - 150#, 300# ect.

So a Goggle valve can be designed to 25 or 50 psi for example. This results in a lighter and more compact design that a full class line blind, which is significant when the google valve size is 40 inches or above..

Enclosed Cam-Goggle

The enclosed Cam-Goggle valve enables the spectacle plate to be changed without releasing any medium to atmosphere.They are man safe and 100% leak tight. The enclosure can however not exceed 2.5 bar.
